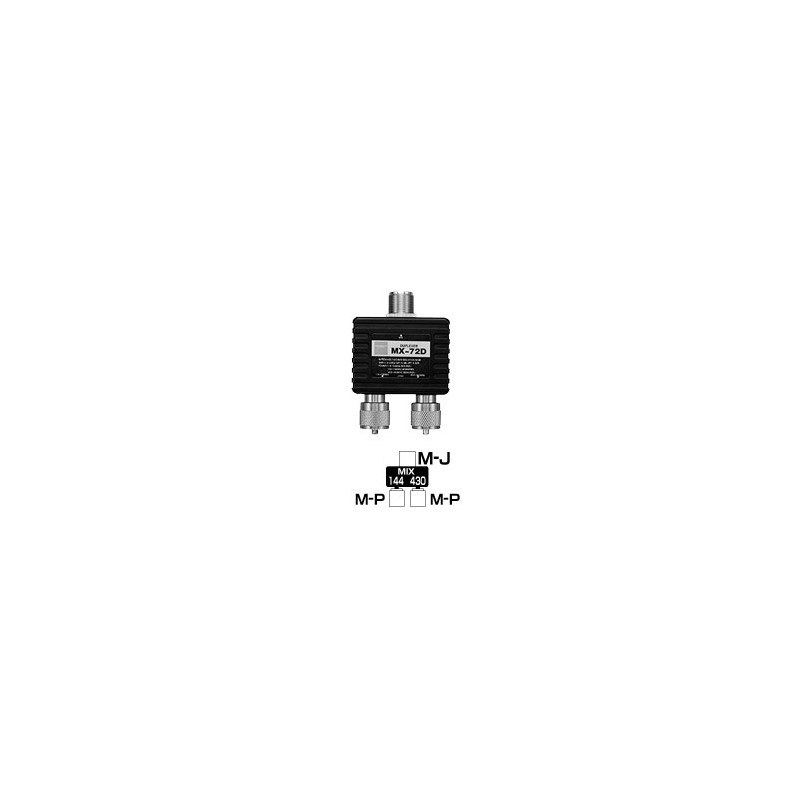

Diamond MX72D Duplexer HF 144/430MHz

Dimensions: 46W x 27H x 57D mm
Weight: 180g

Passband width:
- LPF/1.6 to 30MHz 49 to 150MHz
- HPF/350 to 460MHz
- (LPF: 1.6 to 225MHz, HPF: 340 to 1000MHz receiving only)

Power rating:
- 1.6 to 30MHz: 400W(CW)/1kW(PEP)
- 49 to 150MHz: 150W(CW)/400W(PEP)
- 350 to 460MHz: 100W(CW)/250W(PEP)

Insertion loss:
- LPF/Less than 0.1dB
- HPF/Less than 0.2dB

Isolation: LPF: More than 60dB
Impedance: 50ohms
VSWR: Less than 1.2:1
Connector: (MIX)M-J/(144)M-P/(430)M-P
