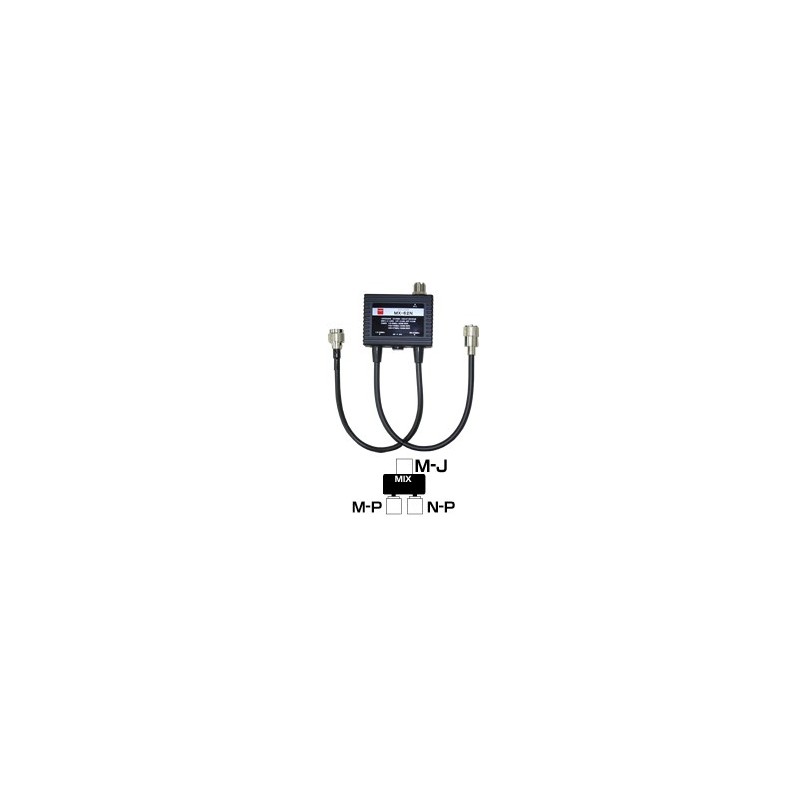

Diamond MX62N Diplexer HF+6m/2m/70cm
69.00
59.00
Save 10.00
Tax included
MX62N: LPF:1.6-56MHz / HPF: 76-470MHz(76 to 120MHz for receiving only)
Dimensions:86Wx25Hx64Dmm
Weight:360g
Pass Band Frequency: LPF: 1.6-56MHz / HPF: 76-470MHz(76 to 120MHz receiving only)
Power: 1.6-56MHz 600W (PEP)
140-150MHz 600W(PEP)
430-470MHz 600W (PEP)
Insertion loss:1.6-56 MHz Less than 0.2dB
140-150MHz Less than 0.3dB
Impedance:50ohms / VSWR:Less than 1.2
Isolation: More than 50dB
Connector:Mix: SO-239
1.6-56MHz: PL259 /76-470MHz: N-P
Coaxial cable:5D-2V 35cm
61053
