- -9.00

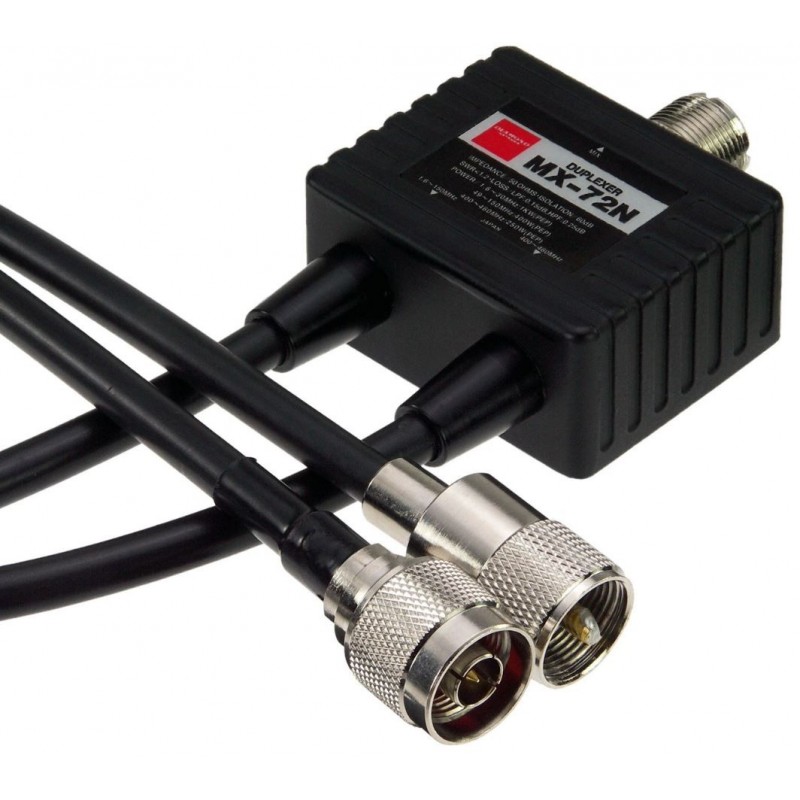

Diamond MX72N Diplexer 2m/70cm
48.00
39.00
Save 9.00
Tax included
HF 144/430MHz
Dimensions: 46Wx25Hx57Dmm
Weight: 220g
Passband width: LPF/1.6 to 30MHz 49 to 150MHz, HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
Power rating: 1.6 to 30MHz: 400W (CW)/1kW(PEP), 49 to 150MHz:150W(CW)/400W(PEP), 400 to 460MHz:100W(CW)/250W(PEP)
Insertion loss: LPF/Less than 0.15dB, HPF/Less than 0.25dB
Isolation LPF: More than 60dB
Impedance: 50ohms
VSWR: Less than 1.2:1
Connector: (MIX)M-J/ (144) M-P/(430)N-P
Coaxial cable: 5D-2VS(35cm)
