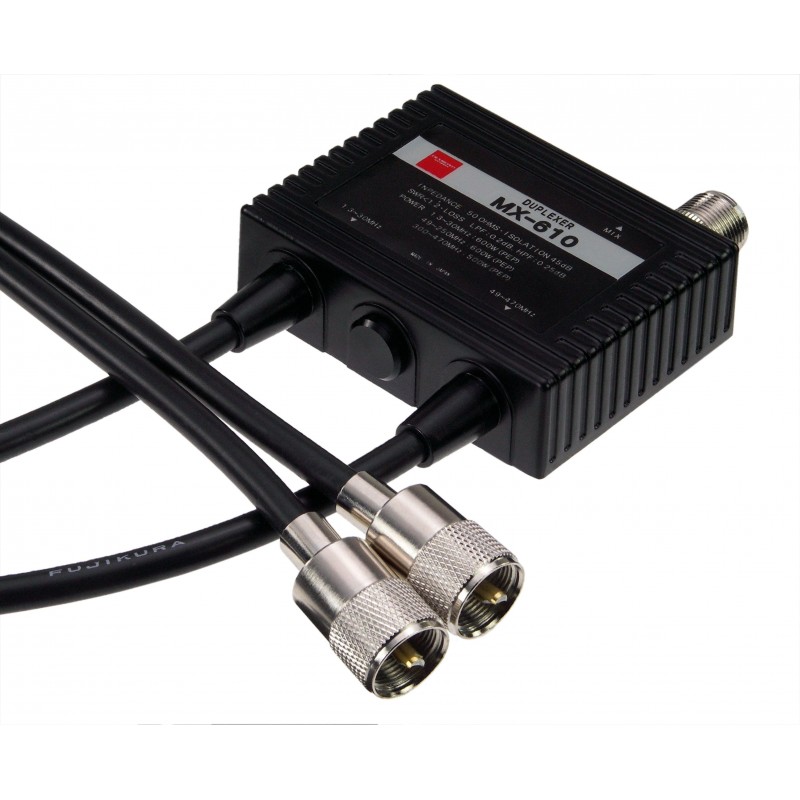

Diamond MX610 Diplexer HF/2m+70cm

Dimensions:86Wx25Hx64Dmm
Weight:300g
Passband width:LPF/1.3 to 30MHz,HPF/49 to 470MHz(76 to 120MHz receiving only)
Power rating:1.3 to 30MHz/600W(PEP),49 to 250MHz/600W(PEP),300 to 470MHz/500W(PEP)
Isolation loss:LPF/Less than 0.2dB(1.3 to 30MHz),HPF/Less than 0.25dB(49 to 470MHz)
Isolation:More than 45dB
Impedance:50ohms / VSWR:Less than 1.2:1
Connector:(MIX)M-J/(1.3 to 30MHz)/M-P (49 to 470MHz)M-P
Coaxial cable:5D-2VS(35cm)
