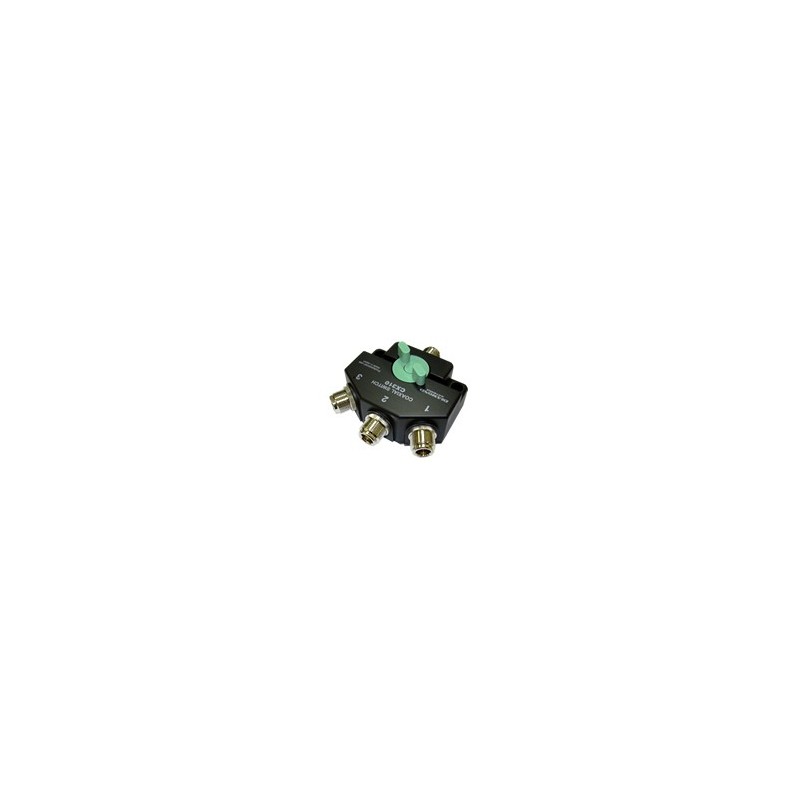

Diamond CX310N Antenna Switch
123.00
99.00
Save 24.00
Tax included
Dimensions: 71Wx57Hx42Dmm
Weight: 440g
Frequency range: DC to 1500MHz
Impedance: 50ohms
Connector: N-J
VSWR: Less than 1.1:1 (DC to 500MHz), less than 1.2:1 (500 to 1500MHz)
Insertion loss: Less than 0.1dB (DC to 500MHz), less than 0.2dB (500 to 1500MHz)
Isolation: More than 60dB (DC to 500MHz), more than 50dB (500 to 1500MHz)
Max.power rating (When VSWR is less than 1.2:1): 1.5KW (DC to 30MHz), 1KW (30 to 150MHz), 500W (150 to 500MHz), 250W (500 to 1000MHz), 150W (1000 to 1500MHz)
