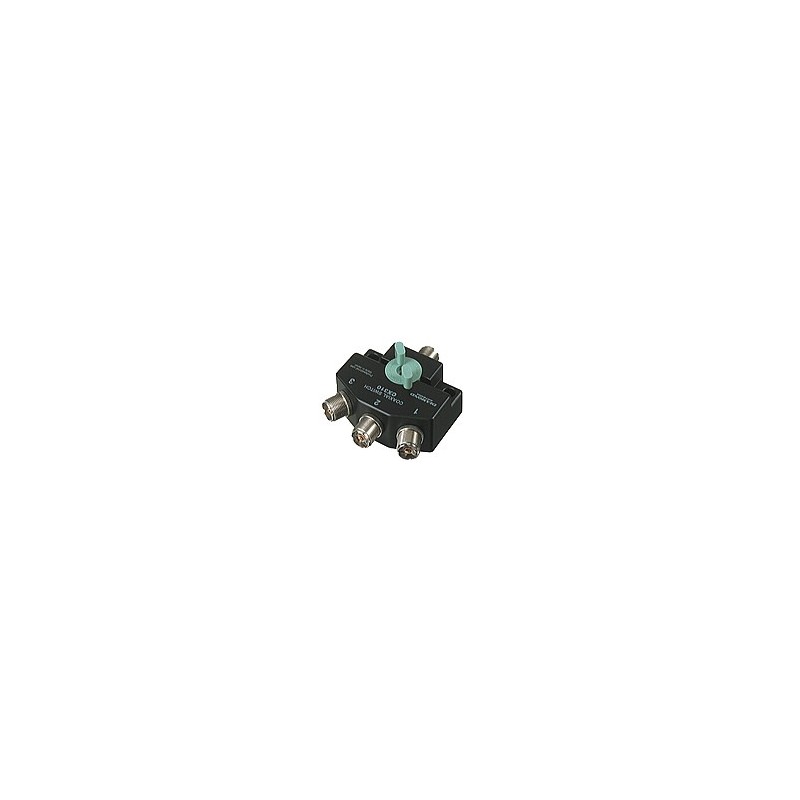

Diamond CX310A Antenna Switch
92.00
76.00
Save 16.00
Tax included
Dimensions: 80Wx41Hx60Dmm
Weight: 575g
Frequency range: DC to 800MHz
Impedance: 50ohms
Connector: M-J
VSWR: Less than 1.1:1 (DC to 500MHz), less than 1.2:1 (500 to 1000MHz)
Insertion loss: Less than 0.1dB (DC to 500MHz), less than 0.15dB (500 to 1000MHz)
Isolation: More than 60dB (DC to 500MHz), more than 50dB (500 to 800MHz)
Max.power rating (When VSWR is less than 1.2:1): 1.5KW (DC to 30MHz), 1KW (30 to 150MHz), 500W (150 to 800MHz)
