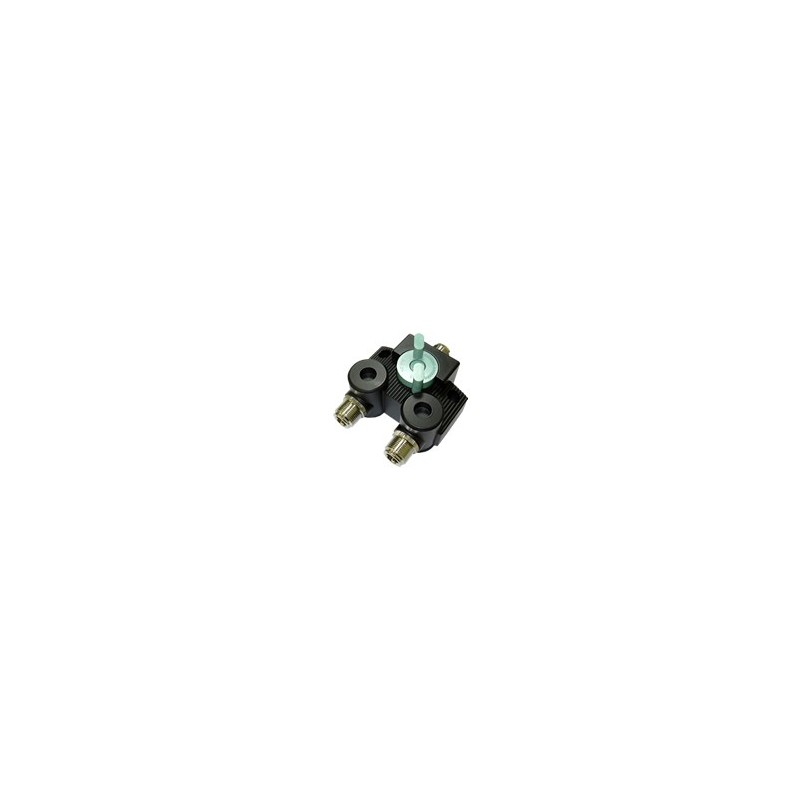

Diamond CX210N Antenna Switch
66.00
56.00
Save 10.00
Tax included
Dimensions: 71Wx57Hx42Dmm
Weight: 440g
Frequency range: DC to 3000MHz
Impedance: 50ohms
Connector: N-J
VSWR: Less than 1.05:1 (DC to 500MHz), less than 1.1:1 (500 to 1000MHz), less than 1.15:1 (1000 to 2000MHz), less than 1.2:1 (2000 to 3000MHz)
Insertion loss: Less than 0.05dB (DC to 500MHz), less than 0.1dB (500 to 1000MHz), less than 0.15dB (1000 to 2000MHz), less than 0.2dB (2000 to 3000MHz)
Isolation: More than 70dB (DC to 200MHz), more than 60dB (200 to 1000MHz), more than 55dB (1000 to 2000MHz), more than 50dB (2000 to 3000MHz)
Max.power rating: 1.5KW
60922
