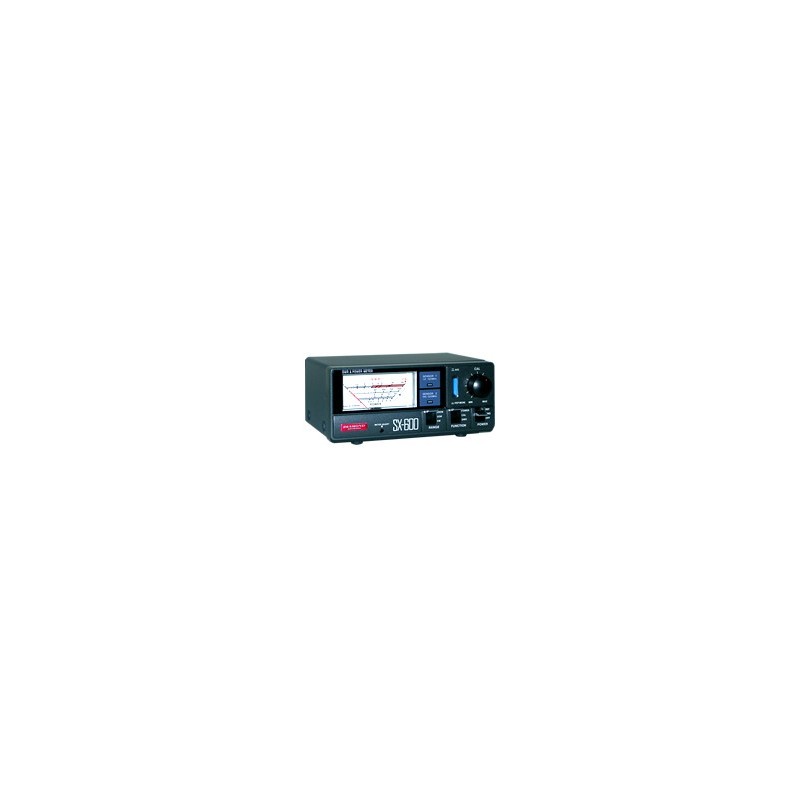

Diamond SX600N SWR/Power Meter

Dimensions: 155Wx63Hx103Dmm
Weight: 630g
Frequency range: 1.8 to 525MHz/S1 (1.8 to 160MHz), S2 (140 to 525MHz)
Power display range: 5W 20W 200W
Accuracy at full scale: ±10% (F.S.)
Minimum power at SWR measurement: S1 (1W), S2 (4W)
Insertion loss: S1 (less than 0.2dB), S2 (less than 0.3dB)
Measurement function: Forward RF power,Reflected RF power, SWR, PEP monitor
Connector: N-J
Display illumination: Meter illumination and LED function display require external DC13.8V power supply
Sensor: 2 sensors (S1/S2)
