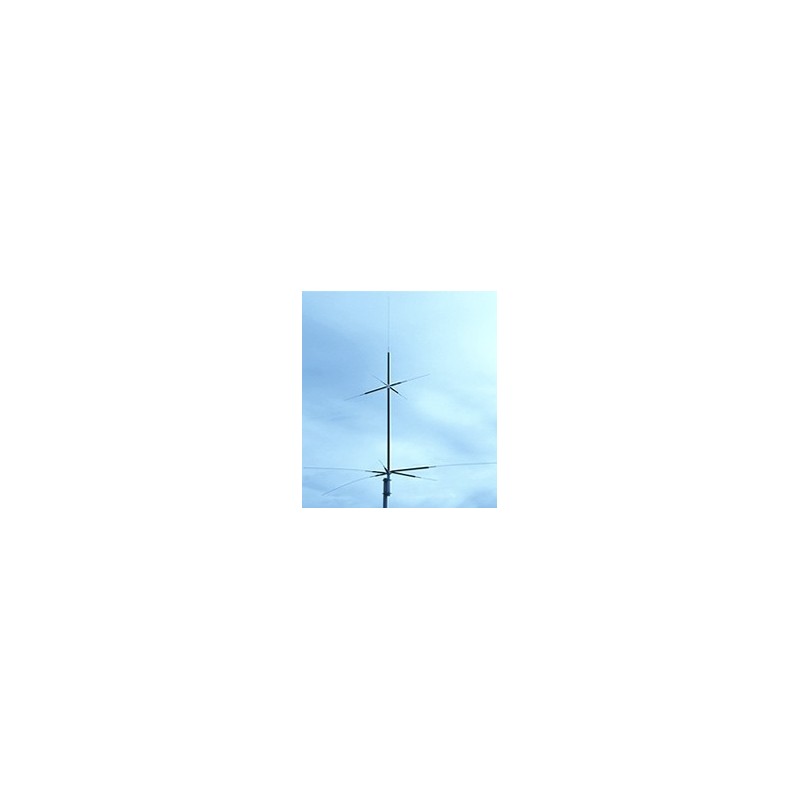

Diamond CPVU8 200W 80/40/20/15/10/6/2m/70cm h2.7m
479.00
409.00
Save 70.00
Tax included
3.5/7/14/21/28(29)/50/144/430 MHz
Length: 2.7m
Weight: 2.4kg
Frequency: 3.500-3.575MHz / 7.00-7.10MHz / 14.00-14.35MHz / 21.00-21.45MHz / 29.0-29.70MHz / 51.0-53.0MHz / 144-146MHz / 430-440MHz
Gain: 2.15dBi (144MHz), 5.5dBi (430MHz)
Max. Power rating: 200W (SSB), 50W (FM/CW)
Impedance: 50Ω
VSWR: Less than 3.0 (3.5-53MHz), Less than 2.0 (144/430MHz)
Mast diameter accepted: 30mm to 62mm
Connector: M
Type: 1/4λ (3.5/7/14/21/28/50MHz) 1/2λ (144MHz) 2x5/8λ (430MHz)
