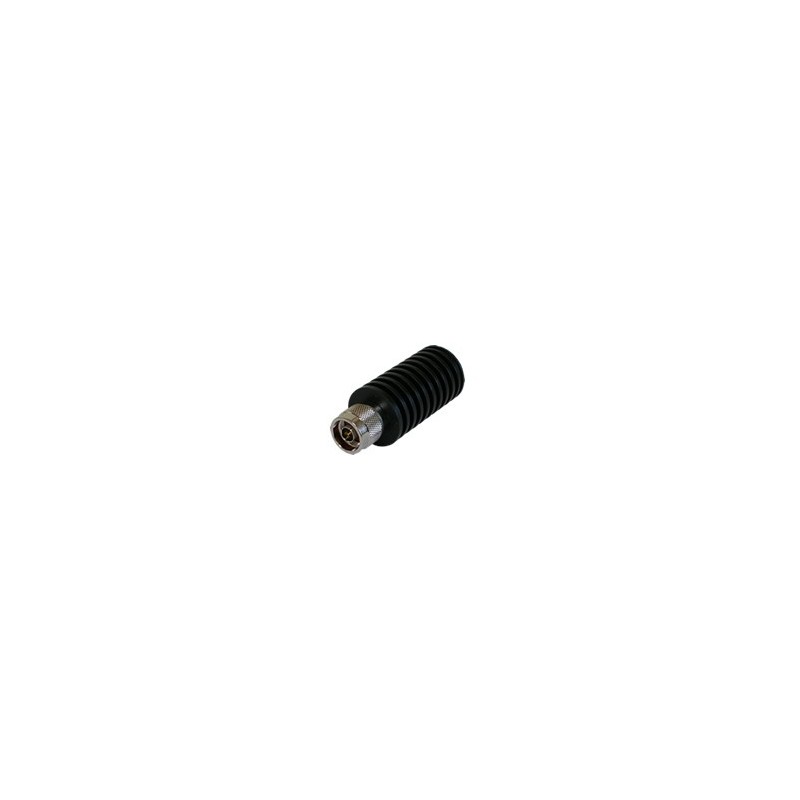

Diamond DL50N Dummy load
69.00
59.00
Save 10.00
Tax included
Dimensions: φ32x81mm
Frequency range: DC-1500 MHz
Impedance: 50Ω VSWR: Less than 1.15 (DC-1GHz), Less than 1.2 (1-1.3GHz) Less than 1.3 (1.3-1.5GHz)
Connector: N-P
Power rating: 15W (continuous), 20W (5 minimums on, 5 minimums off), 50W (1 minimums on, 3 minimums off), 100W (30 seconds on, 3 minimums off)
Remarks: The replacement of DL30N
