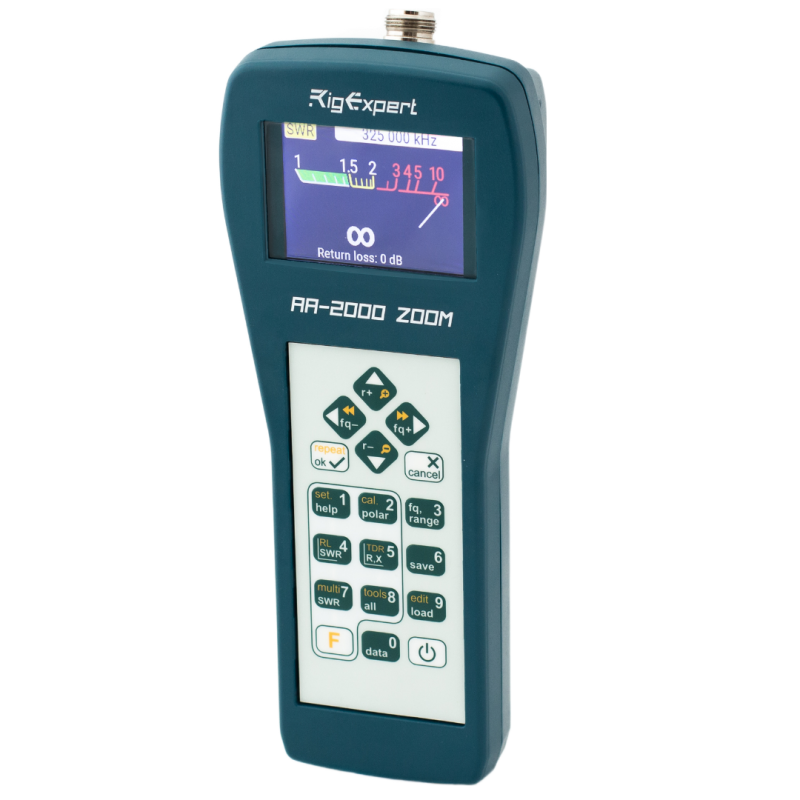

RigExpert AA-2000 ZOOM Antenna Analyzer
1,249.00
949.00
Save 300.00
Tax included
Powerful Antenna and Cable analyzer for up to 2HGz with Big Blanview® Display.
Get ALL you want in ONE:
- BIG sunlight readable Blanview® display;
- High contrast with Low Power Consumption;
- Consistency and accuracy without prior recalibration;
- Multilingual user-friendly interface;
- Built-in Helper at the push of a button;
- Up to three alkaline or rechargeable batteries with voltage from 1.2V to 3.7V;
- Bluetooth LE for communication with mobile app.
Frequency range
- 0.1 to 2000 MHz
Frequency entry
- 1 kHz
Measurement for systems
- 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm
SWR measurement range
- 1 to 10 in chart modes
- 1 to 100 in numerical modes
R and X range
- 0…2000, -2000…2000
Display modes
- Cable tools (stub tuner, length & velocity factor, cable loss and characteristic impedance measurement, LC meter, Multé)
- Optional open-short-load calibration
- R, X chart
- Smith chart
- SWR at single or multiple frequencies
- SWR chart
- SWR, return loss, R, X, Z, L, C at single frequency
- TDR chart (Time Domain Reflectometer)
- User OSL: 10 profiles available
RF output
- Connector type: N
- Output power: -10 dBm (at a load of 50 ohms)
- Output signal shape: square
Power
- Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used
- Three 1.2V Ni-MH batteries, type AA
- Three 1.5V alkaline batteries, type AA
- Three 3.7V LiPo batteries, 14200
- When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
Interface
- 6x3 keys on the water-proof keypad
- 800×480 color Blanview® display
- Bluetooth Specification v.4.2, LE
- Menus and help screens in English (by default), French, Italian, Japanese, Ukrainian, Portuguese, Spanish and German
- USB connection to a personal computer
Operating temperature
- 0…40 °C (32…104 °F)
Weight
- 442 g (15.6 oz)
Dimensions
- 100 × 230 × 55 mm, (4 × 9 × 2 in)
Accessories inside the box
- Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter
GTIN-13
- 4820185420310
Note
- Specifications are subject to change without notice
- Мade in Ukraine
