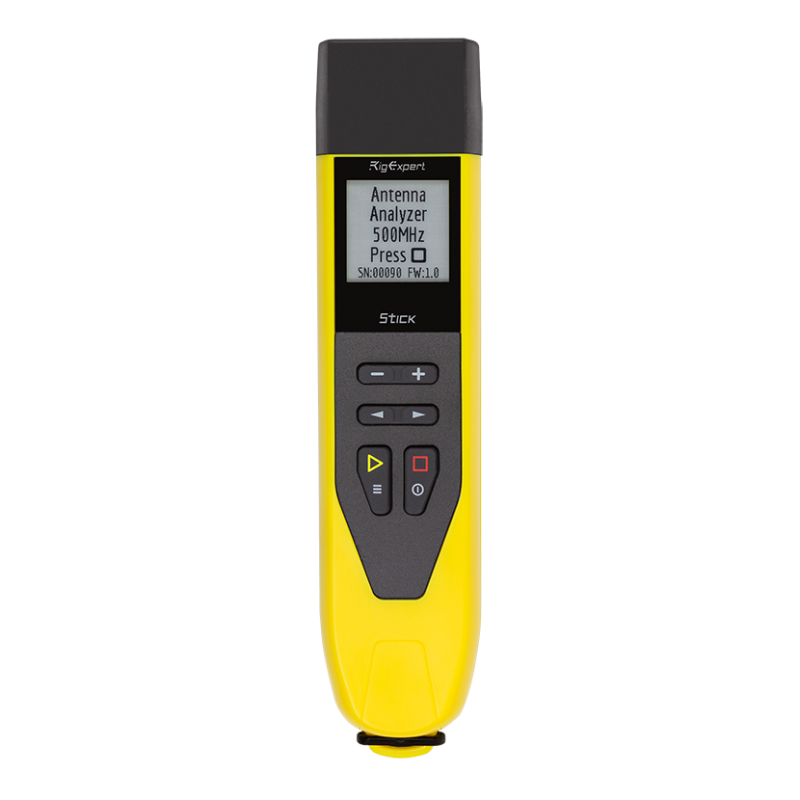

RigExpert Stick 500 Antenna Analyzer
395,00 CHF
349,00 CHF
Économisez 46,00 CHF
TTC
The UHF analyzer is designed for measuring the standing wave ratio (SWR) and return loss, amplitude, and phase angle, as well as the value of active (R) and reactive (X) resistances, considering the sign, inductance (L) and capacitance (C) in parallel and series modes of antennas, cables, lines, filters and other systems in the range of 0,1 MHz to 500 MHz. Like all Stick analyzers, it is capable of 16 hours of continuous measurements without battery recharging. Smart, fast, handy, and even more powerful. At any time, place, and in any weather.
Frequency range
- 0.1 to 500 MHz
Frequency entry
- 1 kHz
Measurement for systems
- 12.5, 25, 28, 37, 50, 75, 100, 150, 200, 300, 450, 600 Ohm
SWR measurement range
- 1 to 10 in chart modes
- 1 to 100 in numerical modes
R and X range
- 0… 10000, -10000… 10000
Display modes
- HAM (a quick check of single band antenna)
- Multé (a quick check of multiband antennas)
- OSL calibration mode
- SWR chart, 100 points
- SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency
RF output
- Connector type: UHF (SO-239)
- Output power: -10 dBm (at a load of 50 ohms)
- Output signal shape: square
Power
- One lithium-ion battery 3.7 V type 18650
- When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources
- Сharge time: 3 hours when using a charger
Interface
- 2 × 3 keys on the waterproof keyboard
- High contrast E Ink display, 200 × 200
- Menus and help screens in English (by default), Japanese
- v.4.2 BLE Single Mode, Class B
Operating temperature
- -15° … 40 ° C (5 … 104 ° F)
Dimensions
- 185 x 40 x 33 mm (7.3 x 1.6 x 1.3 inches)
Weight
- 185 grams (6.5 Oz) with battery
Accessories inside the box
- Lanyard
- Quick start guide
- USB cable
GTIN-13
- 4820185420358
Note
- Specifications are subject to change without notice
- Мade in Ukraine
