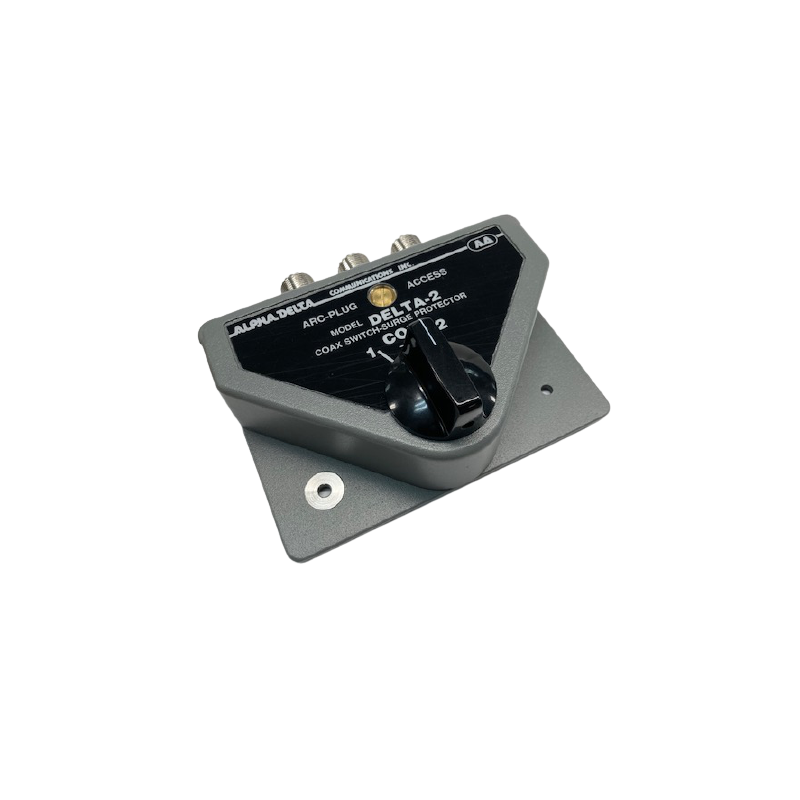

Alpha Delta 2B/PL Antenna Switch
159,00 CHF
148,00 CHF
Sparen Sie 11,00 CHF
Bruttopreis
The extremely high quality design features a cast housing with a constant impedance micro-strip cavity for outstanding performance through UHF. No lossy wafer switches are used, and a solid positive detent roller bearing switch drive leaves no-doubt to which position is selected. The unused antenna circuits are automatically grounded to reduce antenna-interaction noise and the effects of lighting. For the antenna circuit that is in use, the famous replaceable Alpha Delta Arc-Plug™ Cartidge provides continuous protection.
OUTPUT PORT: 2
FREQUENCY: Up to 1300MHz
POWER MAX.: 1500 Watt (0-30 MHz) / 1000 Watt (30-400 MHz)
S.W.R.: 150 MHz < 1.2:1 , 500 MHz < 1.5:1,
INSERTION LOSS: 30 MHz < 0.1 dB, 150 MHz < 1.15 dB, 450 MHz < 0.5 dB
ISOLATION: 30 MHz > 60 dB, 450 MHz > 50 dB
CONNECTORS： PL
60456
